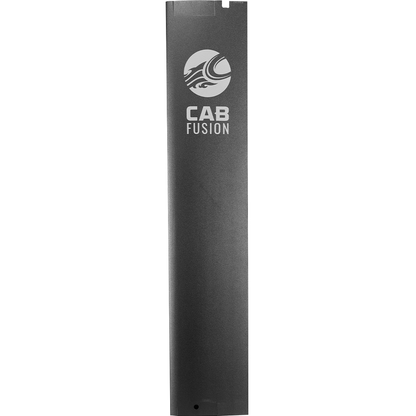

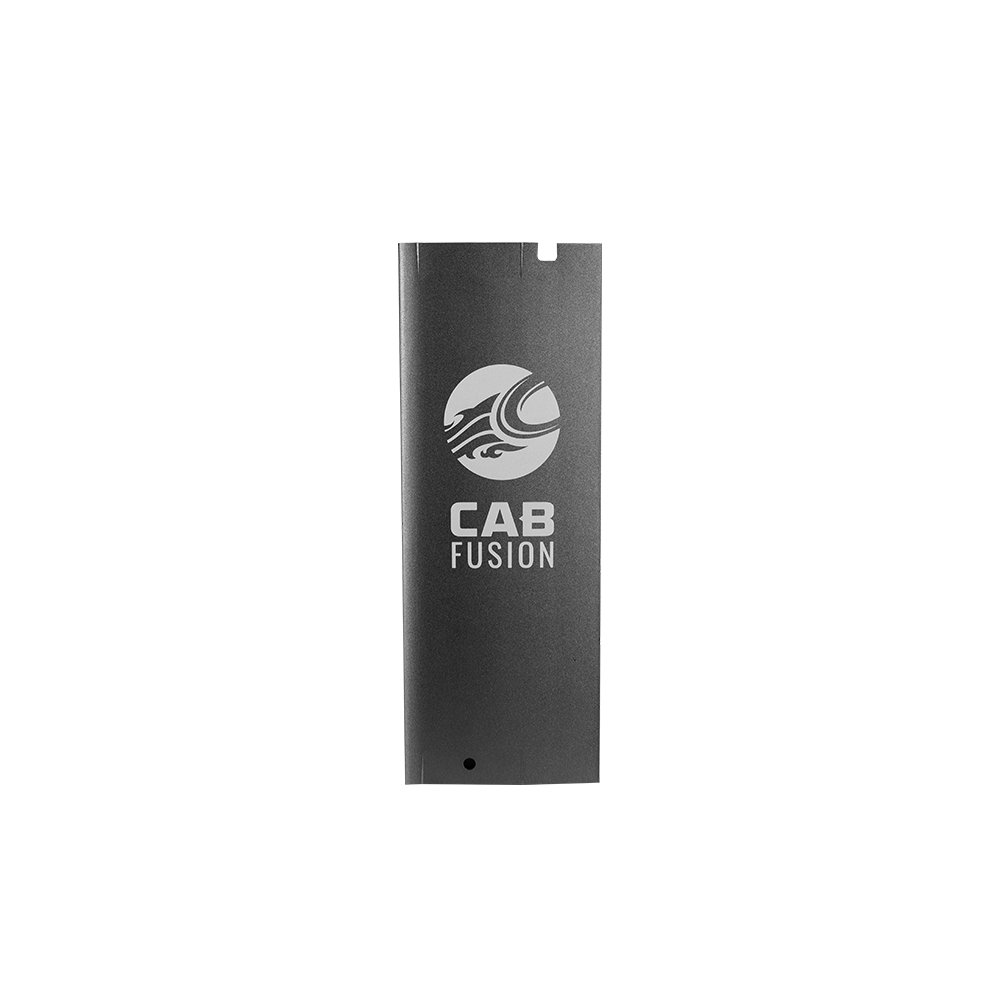

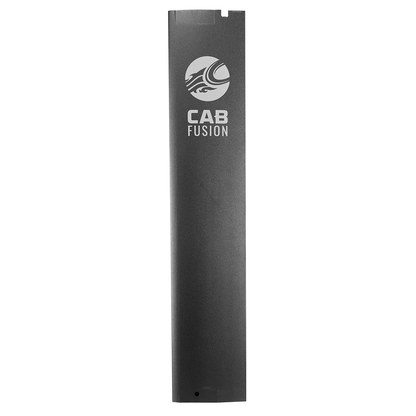

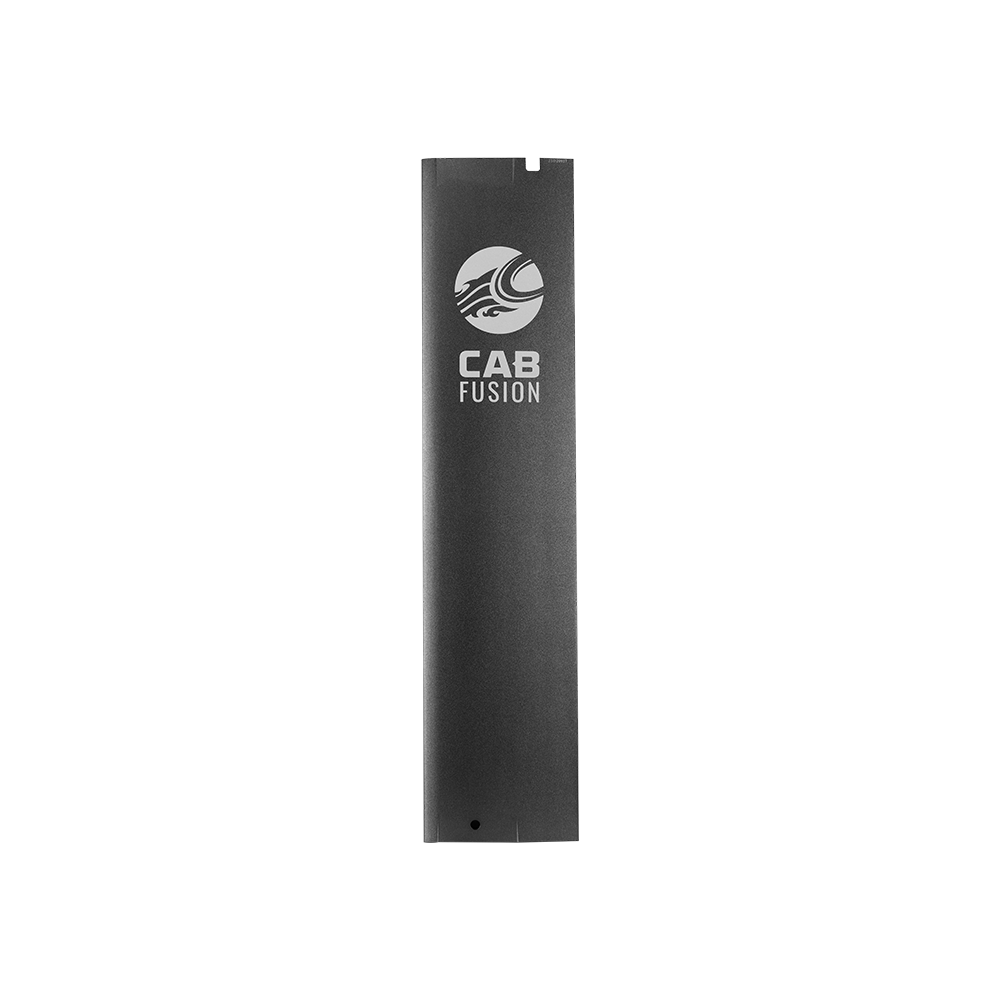

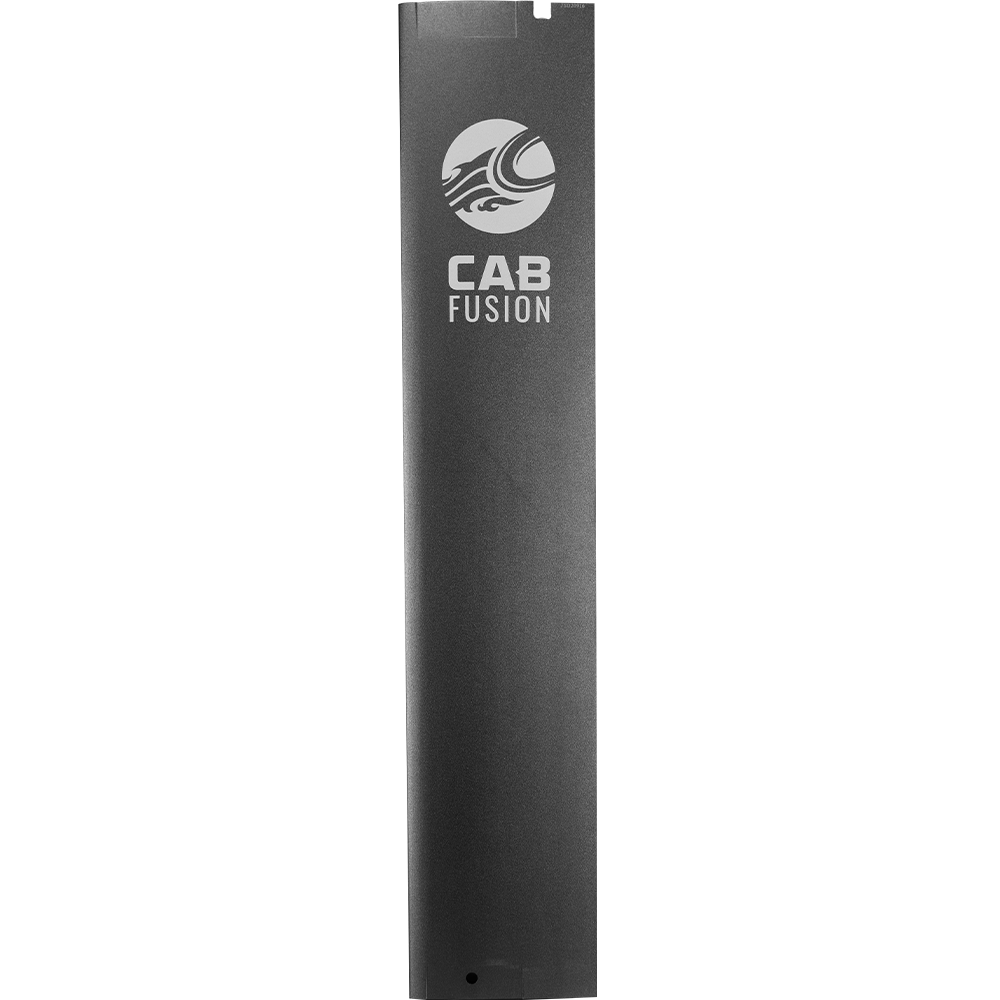

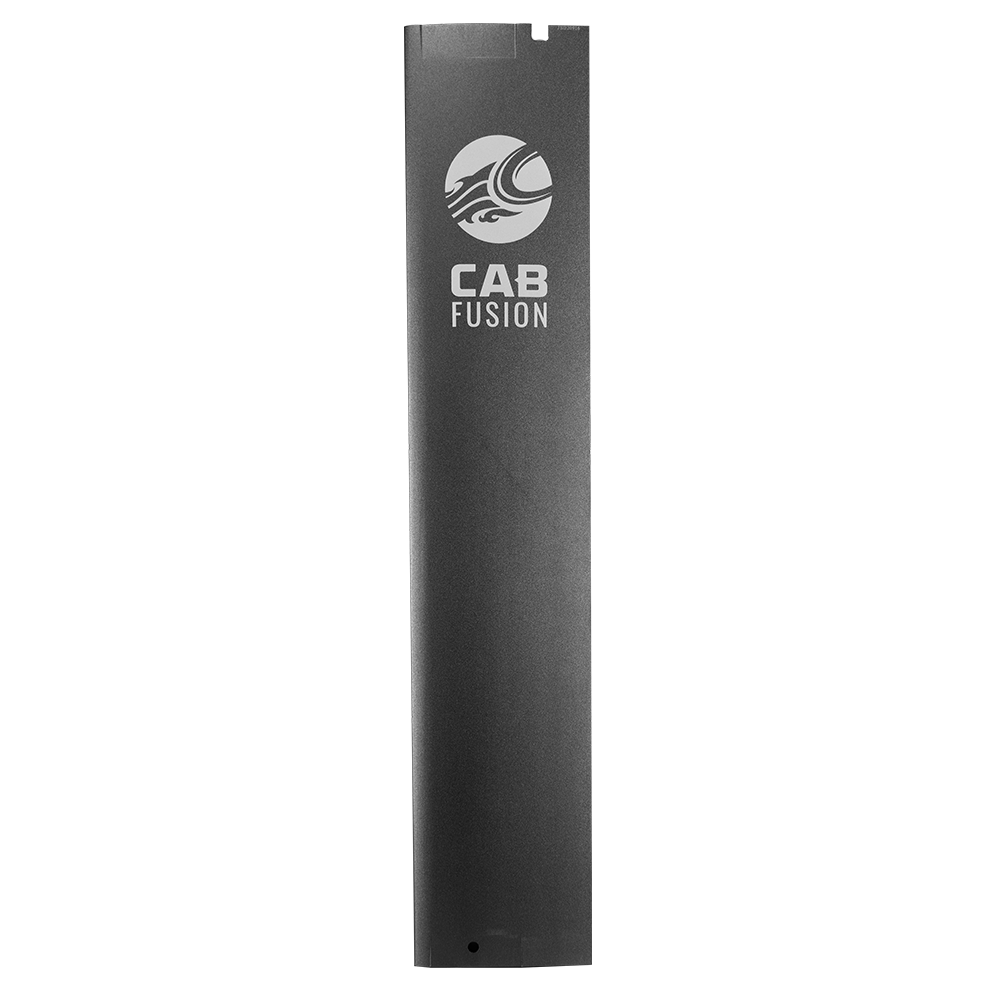

Fusion Alloy Mast

The Fusion Alloy mast is constructed from extruded aircraft grade aluminum that result in an incredibly rigid & hydrodynamic structure. Helicoil inserts eliminate salt water corrosion around the screw connection points. It seamlessly integrates into all 9cm industry standard foil boxes.

- - -

DESIGN PROFILE

Durability, longevity and unmatched stiffness in an alloy setup.

- - -

FEATURES

• Choice of fixed top plate or FQR (Foil Quick Release)
• 3-screw connection for superior rigidity
• Aircraft grade extruded, anodized 6061-T6 aluminum
• Precision tapered fuse-to-mast connection for optimal rigidity
• Helicoil inserts minimizes corrosion and provides long lasting durability

- - -

MAST SPECS

• 40 - Chord 146.6mm / Thickness 16.2mm
• 65 - Chord 146.6mm / Thickness 16.2mm
• 75 - Chord 146.6mm / Thickness 16.2mm
• 85 - Chord 146.6mm / Thickness 16.2mm
